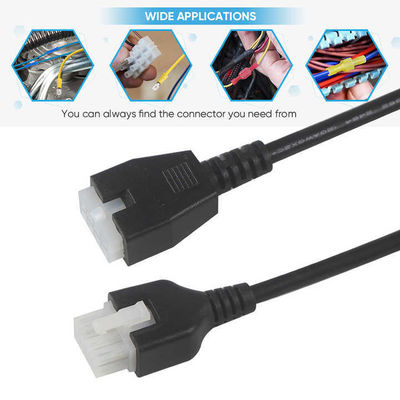

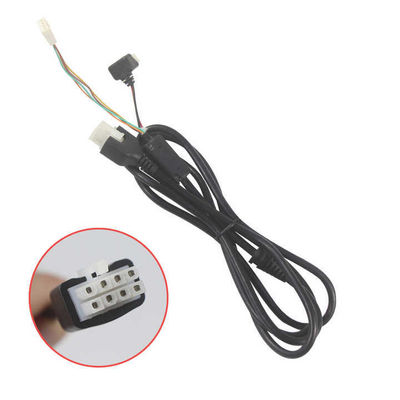

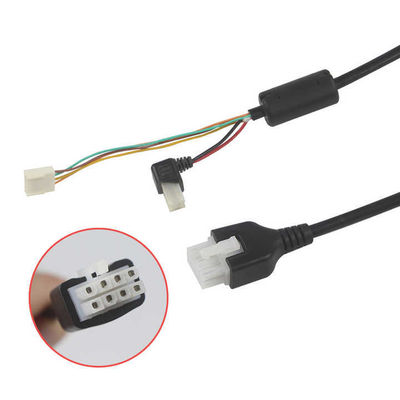

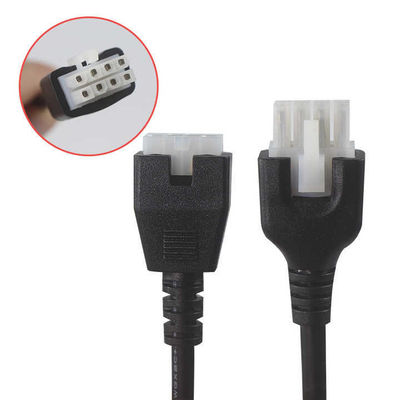

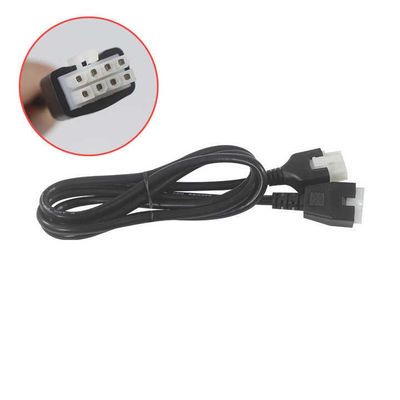

8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control
Technical Specifications
| Parameter | Description |
| Product Name | 8-Pin Power and Signal Cable with Split Leads |
| Connector Type | Open-End / Custom 8-Pin Plug / Terminal / JST / Molex (Optional) |
| Pin Count | 8 Conductors (4 Power + 4 Signal Optional) |
| Wire Type | Multi-core, color-coded |
| Split Leads | Ends divided for easy signal/power routing |
| Conductor Material | Tinned Copper / Bare Copper |
| Wire Gauge | 24AWG / 22AWG / 20AWG |
| Voltage Rating | 5V / 24V DC (Max 5A per circuit) |
| Cable Jacket | PVC / PU / Silicone (Optional) |
| Cable Length | 3ft/4ft / Custom |
| Operating Temperature | –20°C to +80°C |
This 8-Pin Power and Signal Cable with Split Leads is designed for combined power and control transmission in compact systems. Ideal for LED controllers, industrial sensors, automation modules, and DC motor wiring, it provides separate wires for easy connection and clear circuit management.
The split-lead design ensures fast wiring to terminals, boards, or connectors, especially in space-restricted or customized applications.
Multi-Core 8-Wire Configuration – Supports mixed power/signal circuits
Pre-Split Wire Ends – Easy to solder, crimp, or screw into terminals
Flexible Outer Jacket – High resistance to bending and abrasion
Optional Pin Mapping / Labeling – For faster installation
Custom Connector Termination Available
LED Pixel Controller to Light Bar / Driver Board
Motor Control Modules and Stepper Drivers
Signal Interface for PLCs, Industrial Sensors
Embedded Systems and Prototyping
Low-voltage DC Distribution Projects
Do not exceed voltage/current per conductor (typically 5A)
Ensure correct polarity and pin assignment for split wires
Use heat shrink or terminal caps for unused leads
For outdoor use, consider waterproof jacket customization
| Option | Description |
|---|---|
| Connector Termination | Bare Wire / JST / Molex / Terminal Block |
| Pin Count Options | 6-Pin / 8-Pin / 10-Pin / Custom |
| Wire Gauge | 24AWG / 22AWG / 20AWG / Mixed Gauge |
| Jacket Material | PVC / PU / Silicone |
| Labeling | Heat Shrink Tags, Colored Wires, Printed Codes |
| Packaging | Poly Bag / Label Bag / Reel / Custom Box |
