제품 상세 정보:
|
| 강조하다: | Inline Dimmer Switch Extension Cable,5.5mm x 2.1mm Extension Cable,24V DC Power Extension Cable |
||
|---|---|---|---|

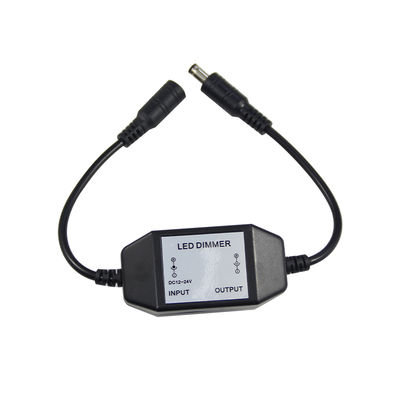

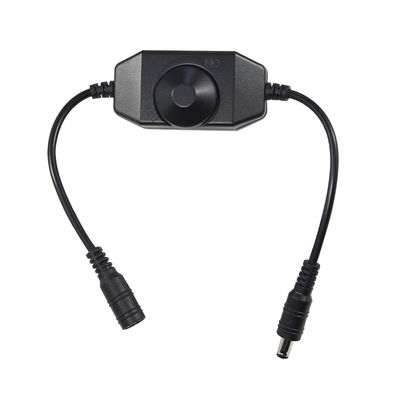

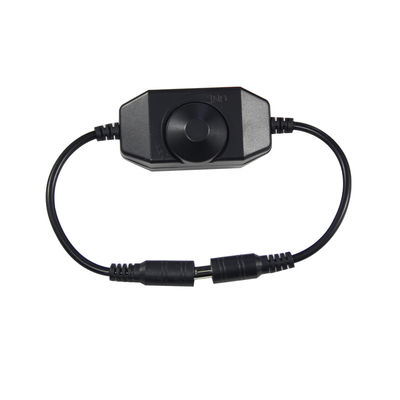

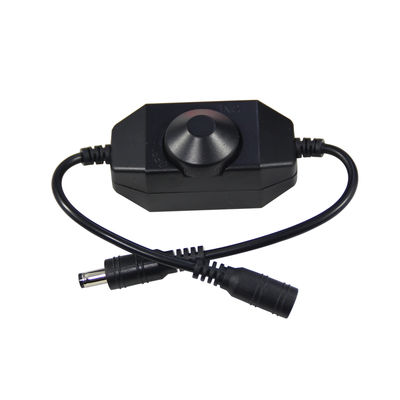

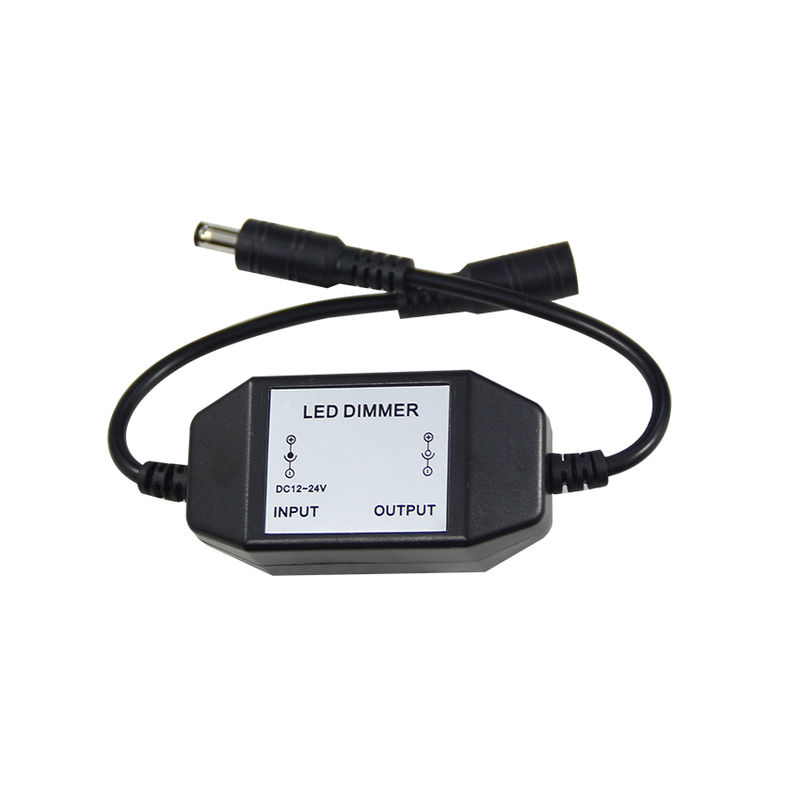

DC Male to Female Power Extension Cable with Inline Dimmer Switch- 5.5mm x 2.1mm for 12V/24V LED Strip, Light Bar, DIY Lighting
| Parameter | Description |
| Product Name | DC Male to Female Cable with Inline Dimmer Switch |
| Connector A | DC Male Plug (5.5mm x 2.1mm) |
| Connector B | DC Female Jack (5.5mm x 2.1mm) |
| Switch Type | Inline Rotary or Slide-Type Dimmer Switch |
| Cable Length | 1.2M/1.5M/1.8M/2M/3M(OEM) |
| Input Voltage | 12V / 24V DC (Max 5A) |
| Output Mode | PWM (Pulse Width Modulation) |
| Dimming Range | 0% – 100% |
| Wire Gauge | 22AWG / 20AWG (customizable) |
| Jacket Material | Flexible PVC |
| Polarity | Red = (+), Black = (–) |
The DC Male to Female Cable with Dimmer Switch is an easy-to-use inline power controller, specially designed for LED light strips, bars, or other 12V/24V DC-powered lighting systems. Featuring a rotary or slide dimmer, it allows users to adjust brightness without unplugging or using external controllers.
Great for DIY lighting kits, under-cabinet LED strips, accent lighting, and more.
Inline Dimmer Switch – Adjust brightness from 0%–100%
Standard DC Plug – 5.5×2.1mm for wide compatibility
PWM Dimming – Flicker-free brightness control
No Tools Needed – Plug-and-play installation
Compact and Flexible Design
12V/24V LED Strips and Light Bars
DIY LED Lighting Projects
Powered Light Panels and Displays
PC Case Lighting
Auto Interior/Exterior LED Lights
Ensure correct polarity: Red = Positive, Black = Negative
Use within rated voltage and current limits (Max 5A)
Not for use with AC or high-power LED drivers
Avoid prolonged use in high-heat or wet environments
| Option | Description |
|---|---|

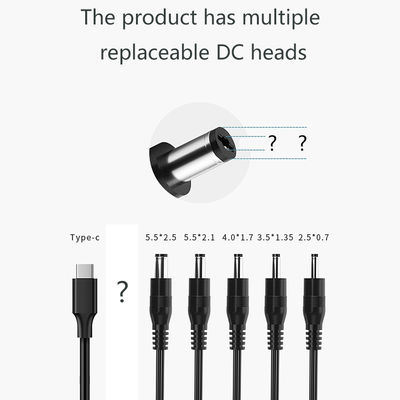

| Connector Type | 5.5×2.1mm / 5.5×2.5mm / 3.5×1.35mm |
| Dimmer Style | Rotary / Slide / Button / Touch |
| Cable Length | 30cm / 50cm / 1m / Custom |
| Wire Gauge | 22AWG / 20AWG / 18AWG |
| Jacket Color | Black / White / Transparent |
| Branding Options | Heat Shrink Label / Tag / Retail Bag |
| Packaging | Poly Bag / Label Bag / Custom Box |
담당자: Ms. Liz
전화 번호: 13823681725
