| 강조하다: | Cigarette Lighter Socket Power Cable,Car Electronics Power Cable,Tinned Stripped Wire Power Cable |
||
|---|---|---|---|

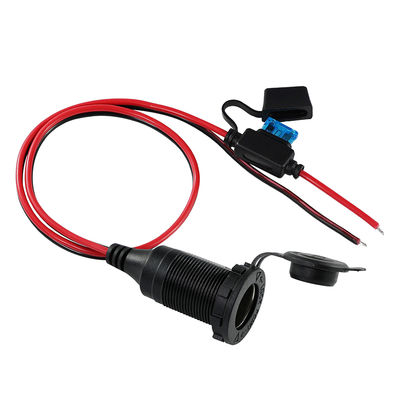

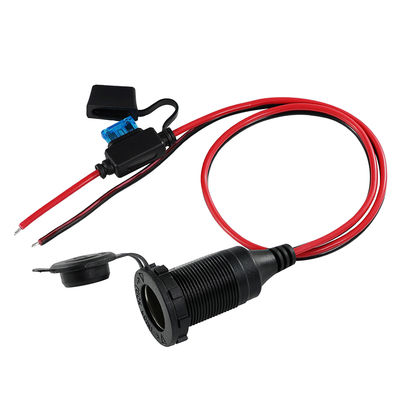

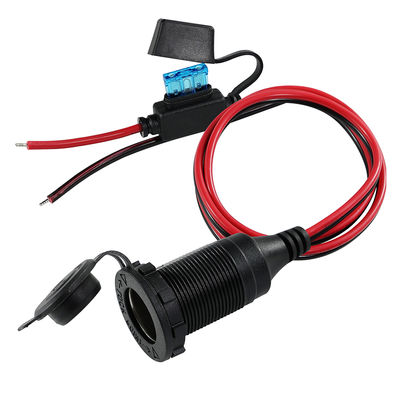

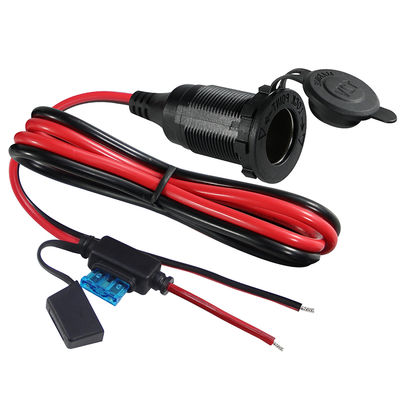

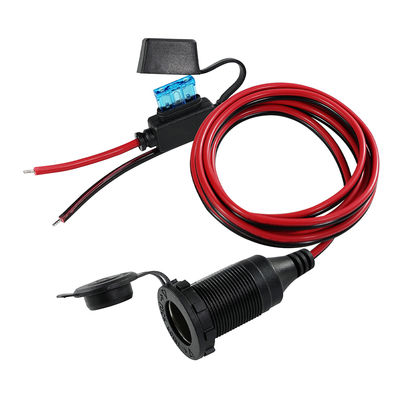

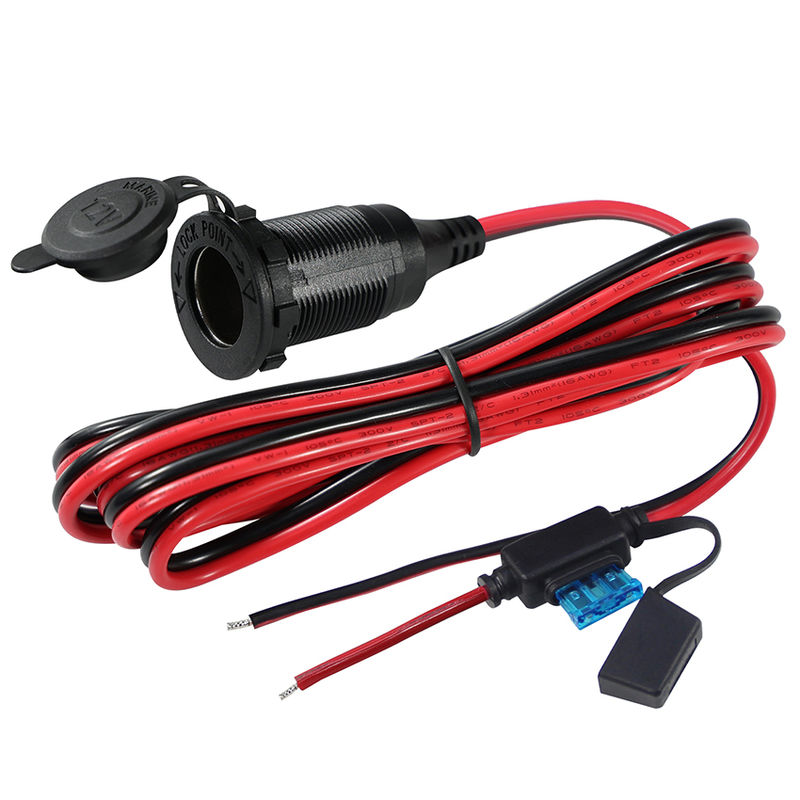

Cigarette Lighter Socket to Tinned Stripped Wire Power Cable with Inline Fuse – 12V/24V DC Output for DIY, Inverter, Car Electronics
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Cigarette Lighter Socket to Tinned Wire Cable with Inline Fuse |
| Input | Cigarette Lighter Socket (Female, 12V/24V DC) |
| Output | Tinned Stripped Wire (Red + / Black –) |
| Fuse Type | Inline Blade Fuse (Replaceable) |
| Fuse Rating | 5A / 10A / 15A / Custom |
| Cable Length | 30cm / 50cm / 1m / Custom |
| Wire Gauge | 16AWG / 18AWG / 20AWG |
| Conductor Material | Tinned Copper |
| Jacket Material | Flexible PVC |
| Operating Voltage | 12V or 24V DC |
| Max Current | Up to 15A (based on fuse) |
| Polarity | Red = Positive, Black = Negative |
This Cigarette Lighter Socket to Tinned Wire Cable with Inline Fuse is designed to power DC devices directly from a vehicle’s power port. Ideal for portable inverters, DIY electronics, air pumps, LED strips, or small appliances, the tinned wire end makes it easy to connect to terminal blocks, screw clamps, or solder pads.
The built-in inline fuse provides overcurrent protection for added safety.
Universal Female Cigarette Socket – Accepts standard 12V/24V male car plugs
Tinned Copper Wire Ends – Ready for DIY or terminal block connection
Inline Blade Fuse Protection – Prevents overload or short circuit damage
Durable PVC Cable Jacket – Withstands bending and vibration in automotive use
Polarity Clearly Marked – Red (+), Black (–)
12V/24V Car or Truck Power Conversions
DIY Power Supply or DC Circuit Builds
Power Inverters or Battery Chargers
Automotive Testing or Repair Projects
LED Strip Wiring / Portable Appliances
Confirm correct voltage and current before connecting load
Always insert fuse matching your device’s current rating
Not for use with AC loads
Keep connections dry and insulated during operation
| Option | Description |
|---|---|
| Socket Type | Standard / Cap Cover / Panel Mount Type |
| Fuse Rating | 5A / 7.5A / 10A / 15A / Custom |
| Cable Length | 0.3m / 0.5m / 1m / 2m / Custom |
| Wire Gauge | 20AWG / 18AWG / 16AWG |
| Wire Ends | Tinned / Pre-Crimped / With Ring Terminal |
| Branding | Cable print / Logo tag / Custom bag |
| Packaging | PE bag / Label bag / Retail blister pack |
