제품 상세 정보:
|
| 강조하다: | Power Wire EC5 to 2P Cable,LiFePO4 Battery EC5 to 2P Cable |
||
|---|---|---|---|

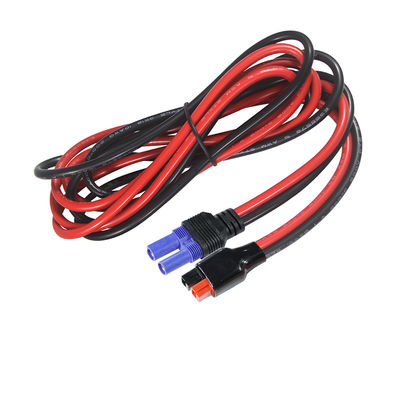

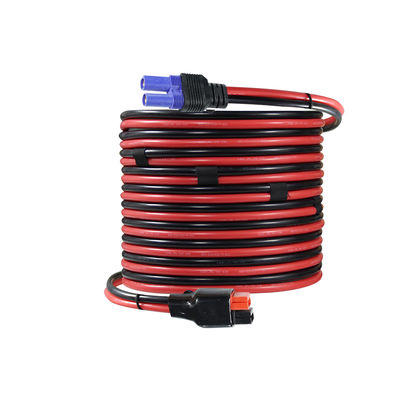

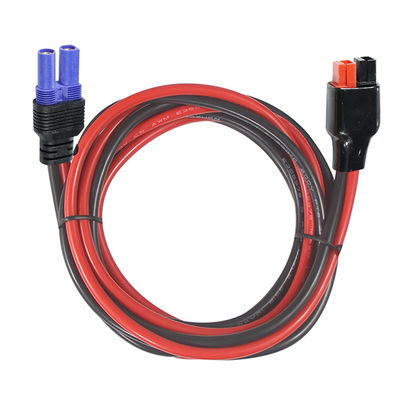

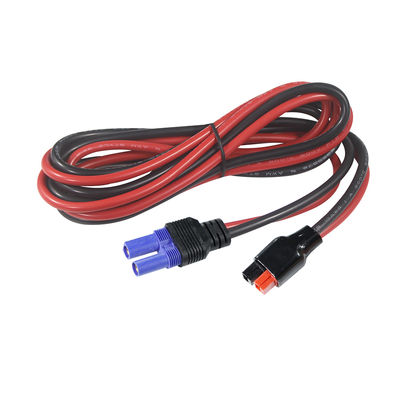

EC5 to 2-Pin High Current Rectangular DC Connector Cable – 12AWG Power Wire for LiFePO4 Battery, Inverter, Solar Generator, Portable DC Systems
| Parameter | Description |
|---|---|
| Product Name | EC5 to 2-Pin High Current Rectangular DC Connector Cable |

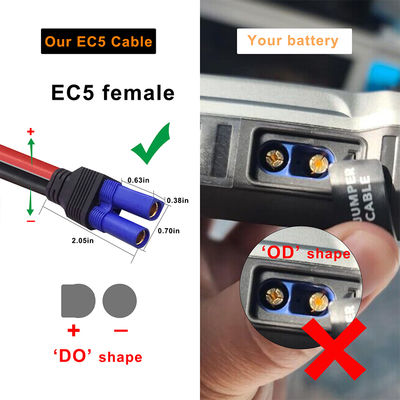

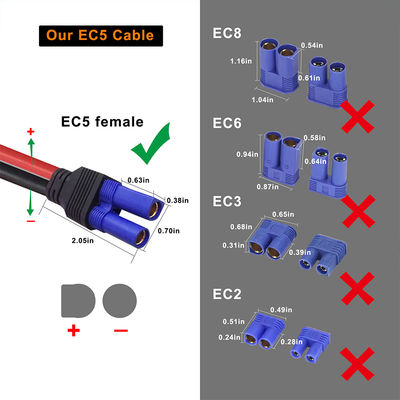

| Connector A | EC5 Plug (Blue, 5.0mm Bullet, Male or Female) |
| Connector B | 2-Pin Rectangular High Current DC Plug (Custom Mold Available) |
| Rated Voltage | Up to 48V DC (Typical), Max 600V (Connector Rated) |
| Rated Current | Up to 50A (depends on wire gauge and connector type) |
| Cable Type | Tinned Copper, Flexible PVC or Silicone Jacket |
| Wire Gauge | 12AWG / 10AWG / 8AWG |
| Cable Length | 30cm / 50cm / 1m / Custom |
| Polarity | Red = Positive, Black = Negative |
| Operating Temp | –20°C ~ +85°C |
This EC5 to 2-Pin Rectangular DC Connector Cable is engineered for high-current DC transmission, making it ideal for LiFePO4 battery packs, inverters, solar power stations, and DC appliances. It offers a secure and reliable link between standard EC5 battery terminals and industrial-grade 2-pin high-amperage rectangular DC connectors, widely used in power banks, energy storage, and off-grid solutions.
High Current EC5 to 2-Pin Rectangular Connector
Secure Plug Design – Rectangular connector ensures anti-reverse polarity fit
Tinned Copper Conductors – Stable, low-resistance power delivery
Flexible Jacket – Silicone or PVC for bendable installation
Wide Voltage Support – Up to 48V nominal DC systems
LiFePO4 or Lithium Battery Packs
Portable Solar Generators / Power Stations
DC to AC Inverter Power Input
RV / Trailer / Marine Electrical Systems
DIY High-Current Projects
Ensure correct polarity before connecting
Use matching rated fuse upstream if required
Do not use in wet or high-heat environments without protective casing
Confirm connector fit to avoid arcing during connection
| Option | Description |
|---|---|
| 2-Pin DC Plug Style | Rectangular Locking / Custom Mold / Panel-Mount Style |

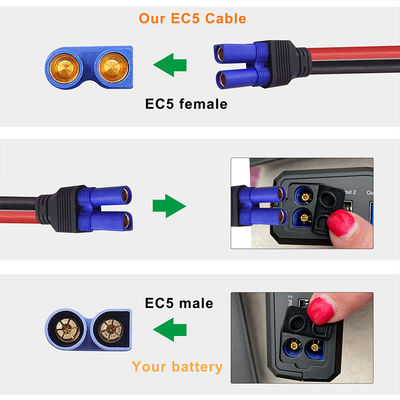

| EC5 Gender | Male / Female |
| Wire Gauge | 14AWG / 12AWG / 10AWG / 8AWG |
| Jacket Material | PVC / Silicone / Nylon Braid |
| Length Options | 0.3m / 0.5m / 1m / 2m / Custom |
| Branding | Heat shrink logo / Cable tag / Printed label |
| Packaging | Polybag / Label Bag / Blister Box |
