제품 상세 정보:
|
| 강조하다: | MCX male right-angle coaxial cable,50 ohm RG316 coaxial cable,MCX male to male cable |
||
|---|---|---|---|

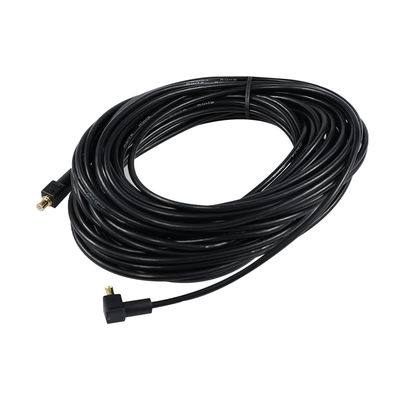

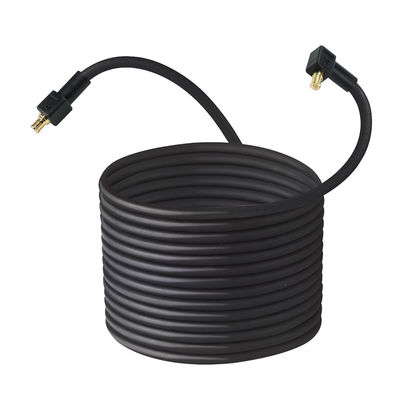

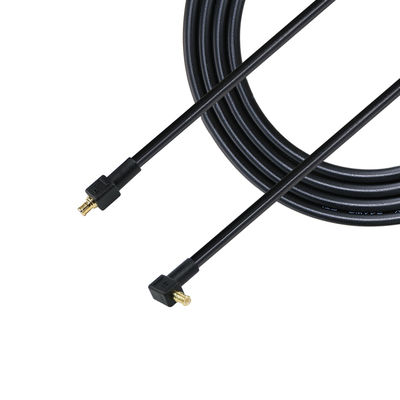

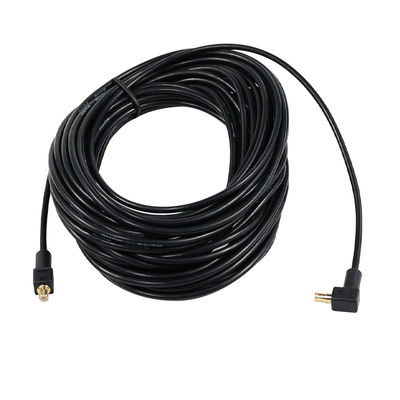

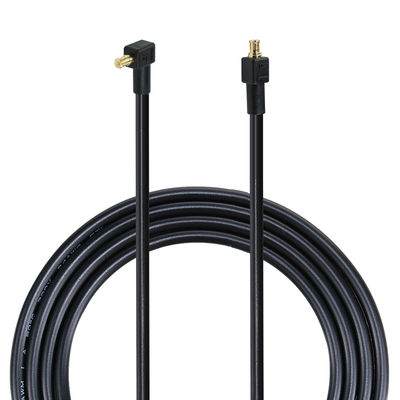

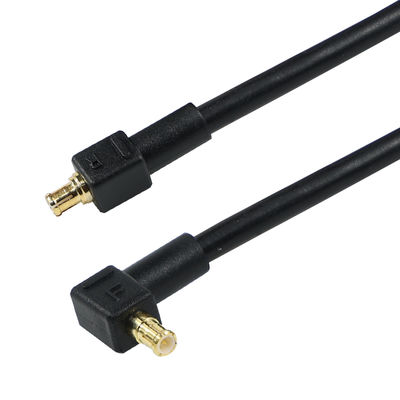

50 Ohm RG316 RF Pigtail for Test & Measurement
| Parameter | Specification |
|---|---|
| Model Number | [Your Model Number, e.g., RF-MCX-MRA-M-316-15C] |
| Connector A | MCX Male (Plug) |
| Connector B | MCX Male (Plug), 90° Right Angle |
| Cable Type | RG316 Low-Loss Coaxial Cable |
| Impedance | 50 Ohms |
| Frequency Range | DC ~ 6 GHz |
| VSWR | ≤ 1.3 (DC-3GHz), ≤ 1.5 (3-6GHz) |
| Insertion Loss | < 0.55 dB/meter @ 3GHz |
| Connector Body Material | Brass, Nickel Plated |
| Connector Center Contact | Brass, Gold Plated |
| Cable Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Cable Outer Diameter | 2.50 mm (0.098 in) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Available Standard Lengths | 10cm, 15cm, 20cm, 30cm, 50cm (Custom lengths available) |
| Compliance | RoHS Compliant |
Engineered for high-fidelity RF connectivity, our MCX Male to MCX Male Right-Angle Coaxial Cable is the definitive solution for space-constrained and high-performance applications. This 50 Ohm RF pigtail assembly combines the reliability of secure MCX connectors with the low-loss characteristics of flexible RG316 cable. The right-angle connector is expertly designed to reduce cable strain and allow for clean routing within compact enclosures, test benches, and embedded systems.
We are a direct manufacturer and can produce custom lengths to meet your exact project requirements.
This versatile RF pigtail is designed for any device requiring a 50 Ohm MCX interface. Applications include:
Note: Please verify that your equipment utilizes MCX series connectors before ordering.
To ensure maximum performance and lifespan, avoid bending the cable tighter than its specified minimum bend radius (approx. 13mm / 0.5 in).
